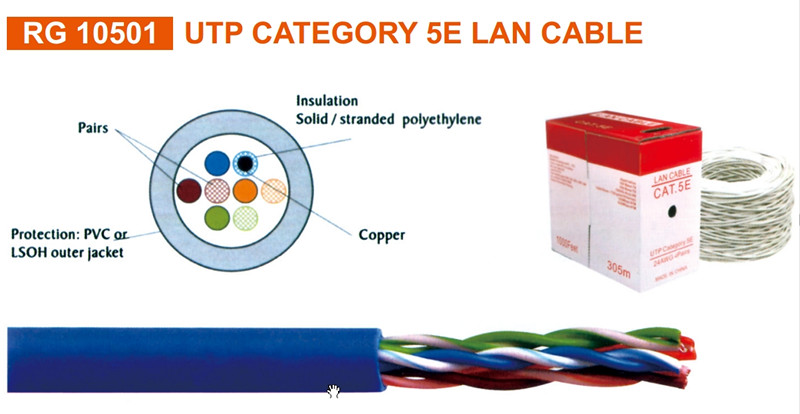

RG 10501
UTP CATEGORY 5E LAN CABLE
Gereral Specification
|
Standard
|
Application
|
|
ISO/IEC 11801-2Ed
|
10/100BASE(TIEEE 802.3)
|
|
ANSI TIA/EIA 568-B.2
|
ATM, TP-PMD, ANSI X39T.5(TP), LSDN, TP-DDI
|
|
EN 50173
|
ETHERNET, 1000BASE-T
|
|
EN-50288-3-1
|
GIGABIT-ETHERNET
|
|
UL & 3P
|
Token Ring (IEEE802.5)
|
Electrical Specification
|
Dielectric strength
|
2.5KV dc-2 seconds
|
|
Condutor resistance
|
Max 9.38Ohm/100mt at 20℃
|
|
Max. ring reisitance
|
16.8 Ohm/100mt at 20℃
|
|
Max. mutual capacitance
|
560pf/100mt
|
|
Max. capacity unbalance
|
330pf/100mt
|
|
Standard impedance
|
100±15 Ohm between 1Mhz and 350Mhz
|
|
Minimum bending radius
|
50mm
|
|
Working temperatures
|
-20~60℃
|
|
